Horizontal stabilizer finished!
Today I set last rivets on the horizontal stabilizer - it feels good😊 Total build ended on 63:15. That is inclusive some help. No onto the elevator.
| The middle section riveted together. |
| Front and back spar clecoed together with the middle section just to check that everything is ok. |
| A lot of holes to dimple in the skins. |
| I was a bit afraid that it could be difficult to reach the holes near the leading edge, but that was no problem at all. |
| The skins onto their cradles to have the HS-905 nose ribs riveted in place. It was a bit difficult and I have to drill out a couple. |
| By using tape I "tweak" the bucking bar for the different tasks, setting rivets becomes much easier, and you avoid scratches on surround parts. |

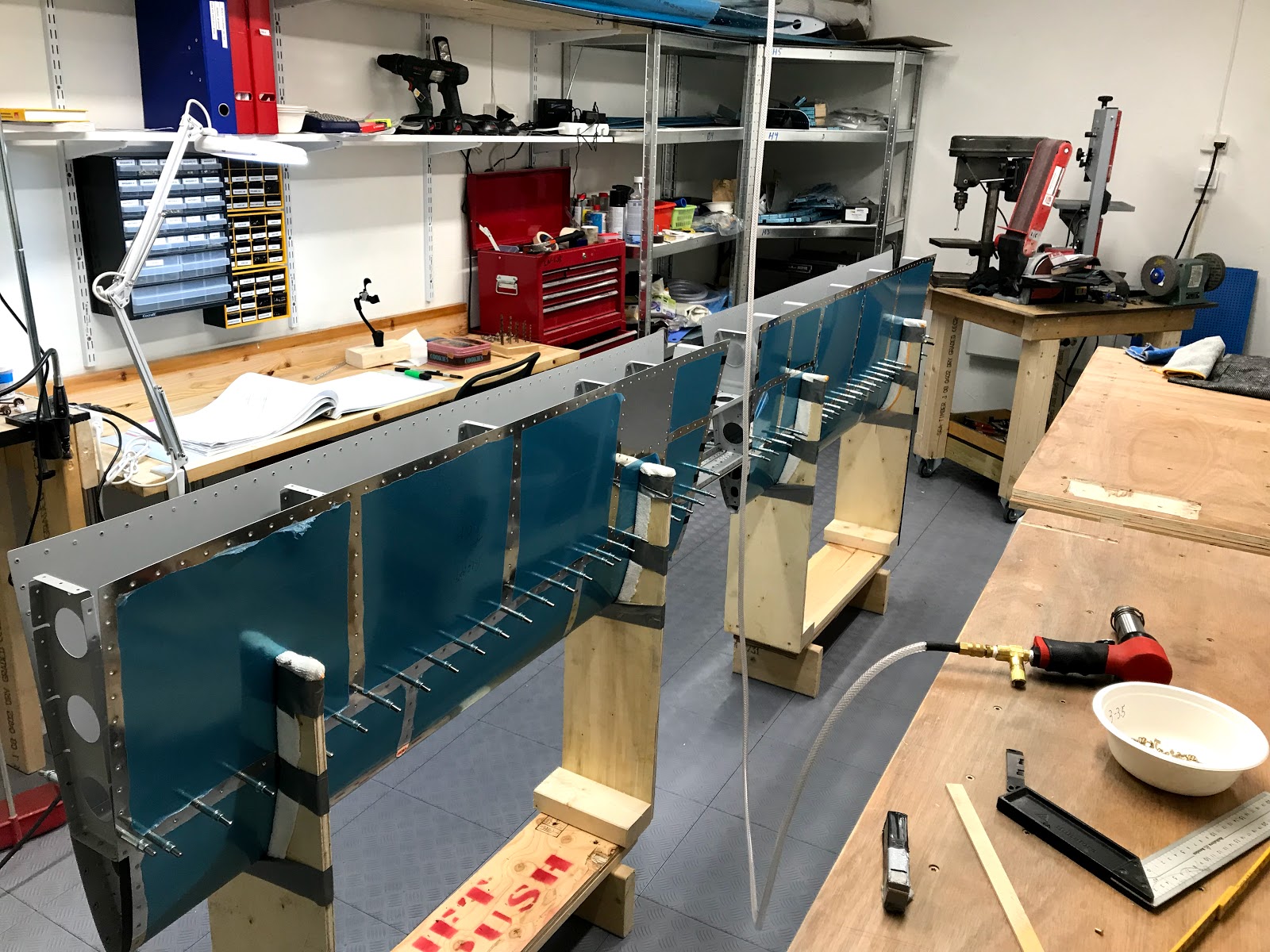

| Everything set up for riveting the front spar. I made the cradles quite high so they could stand on the floor instead of the work bench. |
| The 2 inboard nose ribs (HS-905) was the last rivets to set. |
| All done. |
| And stored. |
